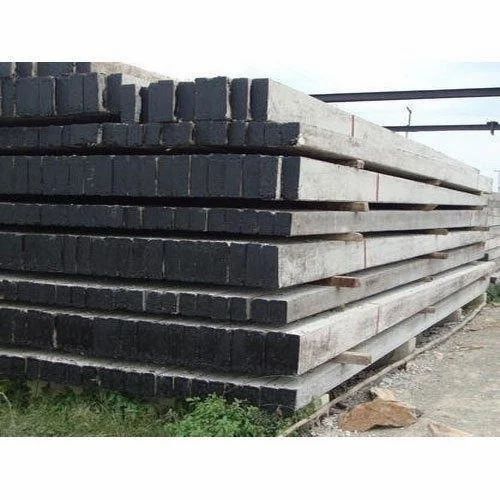

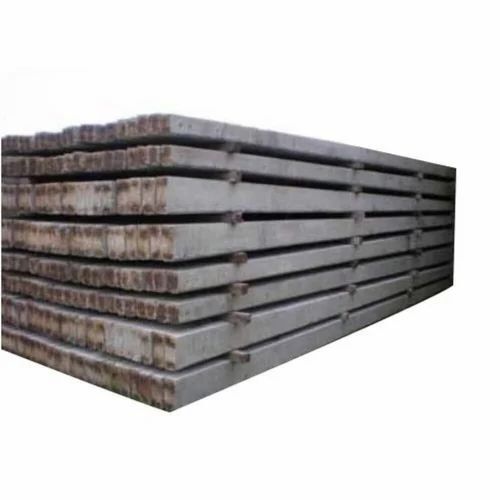

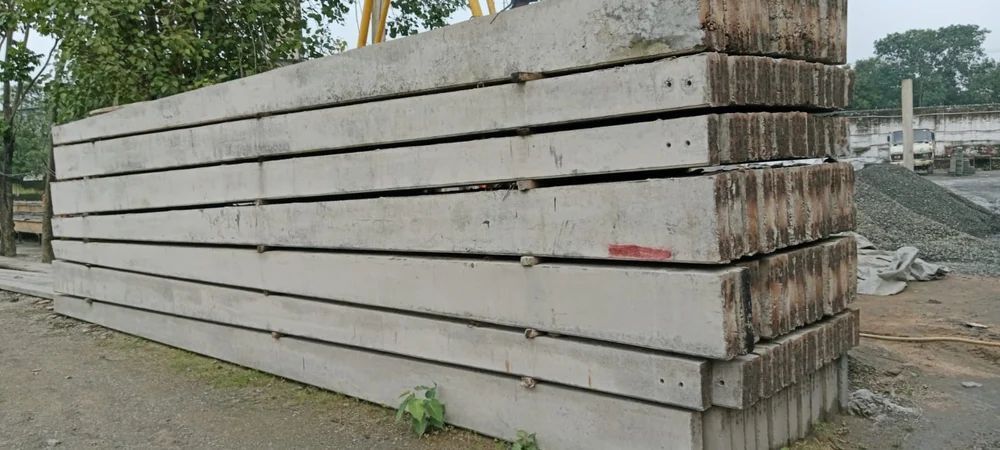

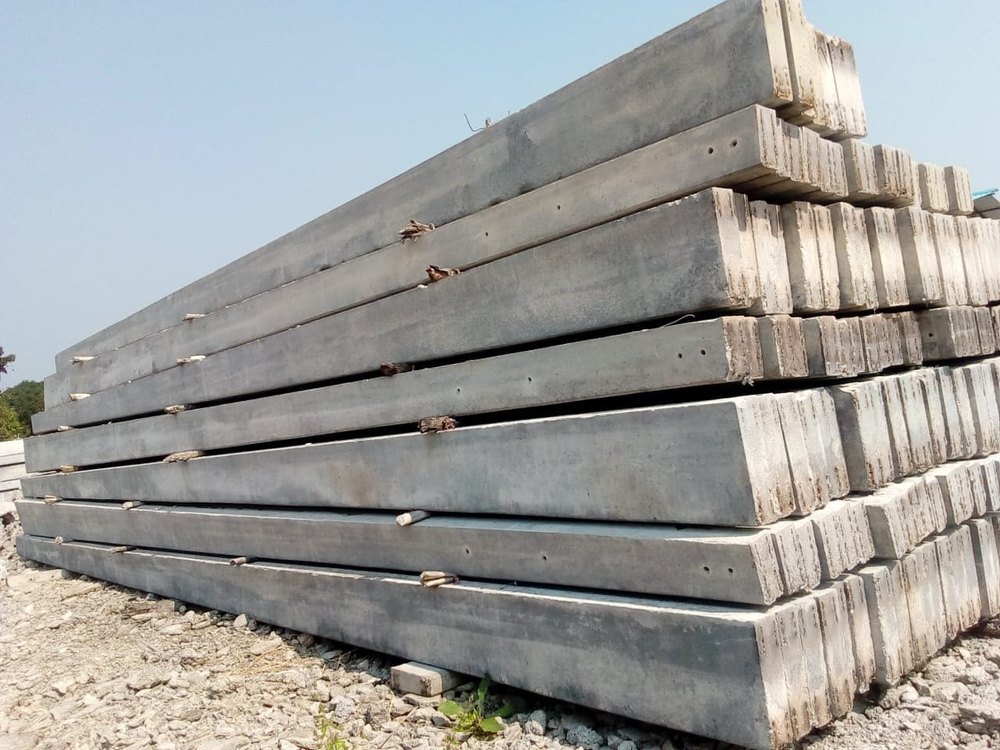

PSC POLE

Name: PSC POLE
Brand: Hind Metal Industries
Price: 4000 INR
Availability: InStock

Price 4000 INR/ Piece

Get a Price/Quote

MOQ : 10 Pieces

PSC POLE Specification

Color
Grey

Load Capacity
Designed for line loads as per IS standards

Form
Solid

Diameter
Varies, typically rectangular cross-sections from 150 mm to 300 mm, circular up to 250 mm

Thickness
Standard thickness as per design specifications (varies by requirement)

Installation Type
Direct embedment in ground

Purity
High-grade cement and steel used

Machines Type
Applicable with Crane or Pole Erection Machines

Features
Weather Resistant, Maintenance Free

Material Grade
M40 to M60 (Prestressed Concrete)

Usage
Power Transmission, Fencing, Street Lighting

Application

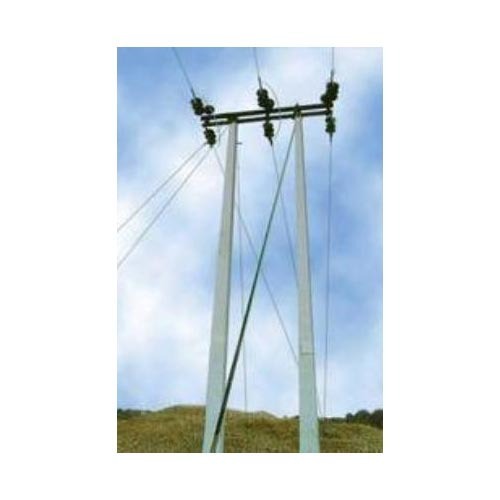

Used for holding overhead power cables and supporting street lights

Product Type
PSC Pole (Prestressed Concrete Pole)

Main Material
Prestressed Concrete

Surface Treatment
Smooth Finish

Size
Available in various lengths, typically 8 to 13 meters

Weight
Depends on size, commonly ranges from 300 kg to 800 kg per pole

Feature
High durability, corrosion resistance, and robust construction

Shape
Rectangular or Circular

Water Absorption
Low, as per IS specifications

Dimensional Tolerance
As per IS: 1678 tolerance standards

Flexural Strength
Enhanced due to prestressed design

Standard Complied
IS 1678:1998 (for Prestressed Concrete Poles)

Crack Resistance
Highly resistant to cracking due to prestressing

Service Life
40-50 years under normal conditions

Customization
Poles can be fabricated as per client specifications

End Fittings
Provision for insulator and cross-arm fittings

Curing Process
Steam or Water Cured for Strength Optimization

Handling
Suitable for manual and mechanized handling

Environmental Suitability
Ideal for use in urban, rural, or coastal areas

Packing
Transported in bulk or as required by client

Seismic Performance
Suitable for seismic zones as per relevant codes

Reinforcement Type
High Tensile Steel Wires

About PSC POLE

Introducing the latest PSC POLE, crafted for top-tier performance with compliance to IS 1678:1998 standards. Get it now and experience robust, lofty construction reinforced by high-tensile steel wires. Designed for a first-string service life of 40-50 years under normal conditions, these poles excel with enhanced flexural strength, exceptional crack resistance, and low water absorption. Suitable for seismic zones, urban, rural, or coastal applications, they offer high durability, corrosion resistance, and a smooth finish. Customizable to your needs, available in various sizes, shapes, and superior material grades, these poles assure reliability for power transmission, lighting, and fencing.

Beyond Power: Extensive Applications & Extra Features

PSC POLES are engineered not only for overhead line support and street lighting but also excel in fencing, telecommunications, and railway electrification. Adaptable for various surfaces-hard soil, rocky terrain, coastal sand-they assure steadfast performance. Enhanced weather resistance, low maintenance, and enduring surface finish make these poles a preferred choice. Each unit comes equipped with end fittings for insulators and cross arms, supporting tailored client requirements and facilitating both manual and mechanized handling during installation.

Global Reach: Export Markets & Delivery Excellence

Our PSC POLES are trusted across major export markets, including Asia, Africa, and the Middle East. We ensure secure shipping with robust packing, available in bulk or as per your requests. Express shipping and order completion are executed via leading FOB ports, promising safe and prompt delivery. Samples are available upon request, enabling quality assessments before bulk orders. As an established exporter, manufacturer, and supplier from India, we prioritize your delivery needs at every stage.

FAQ's of PSC POLE:

Q: How are PSC POLES installed for different applications?

A: PSC POLES are designed for direct embedment in the ground and can be installed using cranes or pole erection machines. Their adaptable cross-section and length make them suitable for various types of terrain and applications, such as street lighting, power transmission, or fencing.

Q: What benefits do prestressed concrete poles offer over conventional alternatives?

A: Prestressed concrete poles provide superior crack resistance, higher flexural strength, and enhanced durability. The prestressing process ensures longevity and reduced maintenance, making them suitable for harsh environmental conditions and seismic zones.

Q: Where can these PSC POLES be used?

A: These poles are ideal for use in urban, rural, and coastal areas. Applications include supporting overhead power cables, street lighting installations, fencing, telecommunications, and railway electrification.

Q: What is the process for customizing PSC POLES?

A: Customization is available to meet specific client requirements. Poles can be fabricated in varying lengths, thicknesses, and shapes, with provisions for different fittings. Clients can discuss their application needs directly for tailored solutions.

Q: When is it recommended to use PSC POLES with enhanced crack resistance?

A: It is advisable to use these poles in regions prone to seismic activity or harsh weather, where superior crack resistance and durability are essential for maintaining long service life and performance.

Q: How does the low water absorption feature benefit PSC POLES?

A: Low water absorption, as per IS specifications, prevents internal damage, reduces corrosion of reinforcement, and ensures that the poles maintain structural integrity over their service life, particularly in humid and coastal environments.
